4 Panel Centre Landing Door/ S50 Model

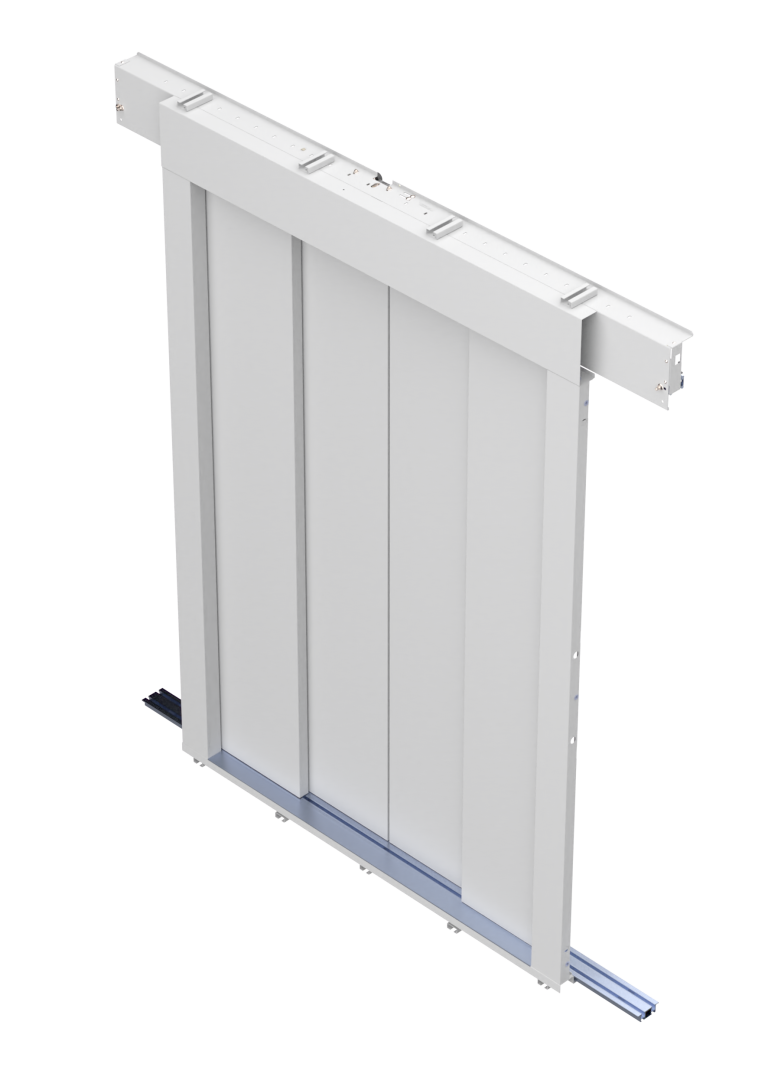

4P STANDARD MODEL

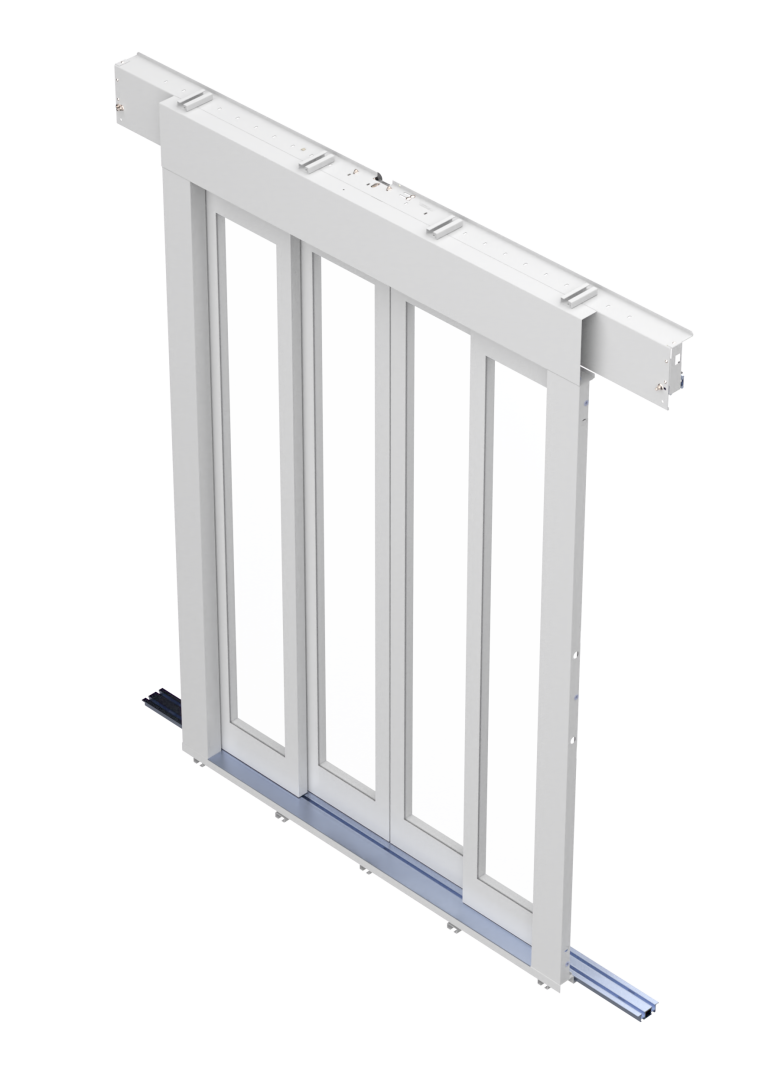

4P FRAMED GLASS MODEL
4P FULL GLASS MODEL
| Door Type | Drawing | Door Width (min.) | Door Width (max.) | Net Input Height (std.) | Net Input Height (max.) | Sill Width | Surface | Fire Resistance EN81-58 |
| C4 |  |
600 mm ** | 1400 mm ** | 2000 mm | 2300 mm | 90 mm | RAL Colors Satinless Steel Glass Panels |
E 120 * |
* The fire resistance class of our landing doors is only valid for our standard models.
** Single lock is used between 600mm-1100mm dimensions that on our landing doors; Double locks are used between 1200mm-1400mm dimensions.
4 Panel Centre Car Door / S50 Model
4P STANDARD MODEL
4P FRAMED GLASS MODEL
4P FULL GLASS MODEL
| Door Type | Drawing | Door Width (min.) | Door Width (max.) | Net Input Height (std.) | Net Input Height (max.) | Sill Width | Surface | Door Card and Motor |
| C4 | |
600 mm * | 1100 mm * | 2000 mm | 2300 mm | 90 mm | RAL Colors Satinless Steel Glass Panels |
PM 120W 2,3Nm 500 d/dk |
| C4 | |
1200 mm * | 1400 mm * | 2000 mm | 2300 mm | 90 mm | RAL Colors Satinless Steel Glass Panels |
PM 188W 3,6Nm, 500 d/dk |
| C4 | |
1500 mm ** | 2400 mm ** | 2000 mm | 2300 mm | 90 mm | RAL Colors Satinless Steel Glass Panels |
2 x PM 120W 2,3Nm 500 d/dk |
* In our cabin doors, single skate is used between 600mm-1100mm dimensions and double skates are used between 1200mm-1400mm dimensions.
** Double skates and double motors are used in our cabin doors between 1500mm-2400mm dimensions.
